6FT8 | pdb_00006ft8

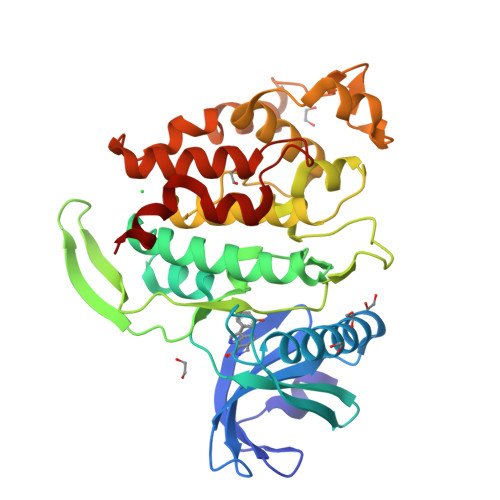

Crystal structure of CLK1 in complex with inhibitor 8g


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.45 Å
  • R-Value Free:
    0.195 (Depositor), 0.200 (DCC)
  • R-Value Work:
    0.164 (Depositor), 0.170 (DCC)
  • R-Value Observed:
    0.166 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted E6TClick on this verticalbar to view details

This is version 1.1 of the entry. See complete history


Literature

Molecular structures of cdc2-like kinases in complex with a new inhibitor chemotype.

Walter, A.Chaikuad, A.Helmer, R.Loaec, N.Preu, L.Ott, I.Knapp, S.Meijer, L.Kunick, C.

(2018) PLoS One 13: e0196761-e0196761

  • DOI: https://doi.org/10.1371/journal.pone.0196761
  • Primary Citation of Related Structures:
    6FT7, 6FT8, 6FT9

  • PubMed Abstract:

    Cdc2-like kinases (CLKs) represent a family of serine-threonine kinases involved in the regulation of splicing by phosphorylation of SR-proteins and other splicing factors. Although compounds acting against CLKs have been described, only a few show selectivity against dual-specificity tyrosine phosphorylation regulated-kinases (DYRKs). We here report a novel CLK inhibitor family based on a 6,7-dihydropyrrolo[3,4-g]indol-8(1H)-one core scaffold. Within the series, 3-(3-chlorophenyl)-6,7-dihydropyrrolo[3,4-g]indol-8(1H)-one (KuWal151) was identified as inhibitor of CLK1, CLK2 and CLK4 with a high selectivity margin towards DYRK kinases. The compound displayed a potent antiproliferative activity in an array of cultured cancer cell lines. The X-ray structure analyses of three members of the new compound class co-crystallized with CLK proteins corroborated a molecular binding mode predicted by docking studies.


  • Organizational Affiliation

    Institut für Medizinische und Pharmazeutische Chemie, Technische Universität Braunschweig, Braunschweig, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Dual specificity protein kinase CLK1339Homo sapiensMutation(s): 1
Gene Names: CLK1CLK
EC: 2.7.12.1
UniProt & NIH Common Fund Data Resources
Find proteins for P49759 (Homo sapiens)
Explore P49759
Go to UniProtKB:  P49759
PHAROS:  P49759
GTEx:  ENSG00000013441
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP49759
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
E6T
Query on E6T

Download Ideal Coordinates CCD File
B [auth A]3-(3-hydroxyphenyl)-1~{H}-pyrrolo[3,4-g]indol-8-one
C16 H10 N2 O2
NIESWLNGCVKLAW-UHFFFAOYSA-N
EDO
Query on EDO

Download Ideal Coordinates CCD File
D [auth A]
E [auth A]
F [auth A]
G [auth A]
H [auth A]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
J [auth A]CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
NA
Query on NA

Download Ideal Coordinates CCD File
C [auth A]SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.45 Å
  • R-Value Free:  0.195 (Depositor), 0.200 (DCC)
  • R-Value Work:  0.164 (Depositor), 0.170 (DCC)
  • R-Value Observed: 0.166 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 91.64α = 90
b = 64.21β = 127.67
c = 88.36γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
MOSFLMdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted E6TClick on this verticalbar to view details

Entry History

Revision History  (Full details and data files)

  • Version 1.0: 2018-05-16
    Type: Initial release
  • Version 1.1: 2024-01-17
    Changes: Data collection, Database references, Derived calculations, Refinement description
