5CHJ | pdb_00005chj

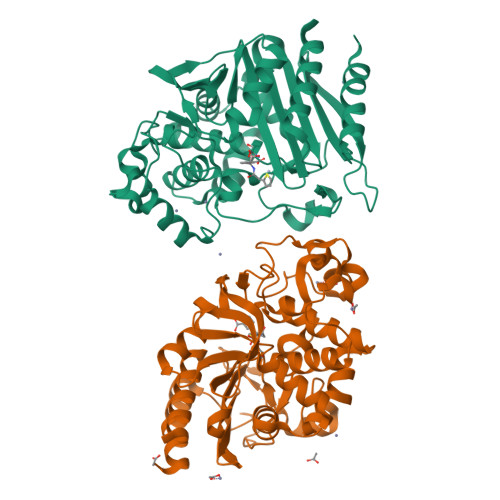

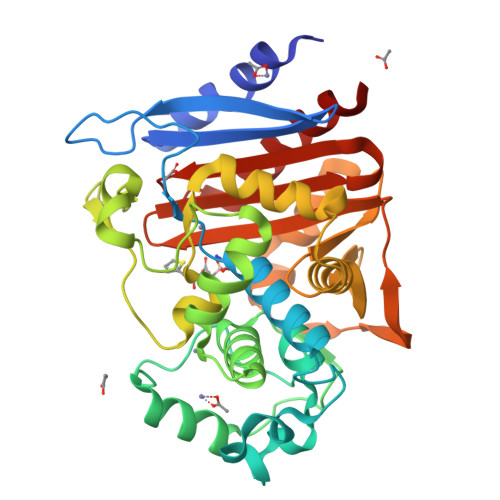

CRYSTAL STRUCTURE OF Fox-4 cephamycinase complexed with cephalothin BATSI (SM23)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.36 Å
  • R-Value Free:
    0.193 (Depositor), 0.190 (DCC)
  • R-Value Work:
    0.163 (Depositor), 0.170 (DCC)
  • R-Value Observed:
    0.165 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted SM2Click on this verticalbar to view details

This is version 1.3 of the entry. See complete history


Literature

Structures of FOX-4 Cephamycinase in Complex with Transition-State Analog Inhibitors.

Lefurgy, S.T.Caselli, E.Taracila, M.A.Malashkevich, V.N.Biju, B.Papp-Wallace, K.M.Bonanno, J.B.Prati, F.Almo, S.C.Bonomo, R.A.

(2020) Biomolecules 10

  • DOI: https://doi.org/10.3390/biom10050671
  • Primary Citation of Related Structures:
    5CHJ, 5CHM

  • PubMed Abstract:

    Boronic acid transition-state analog inhibitors (BATSIs) are partners with β-lactam antibiotics for the treatment of complex bacterial infections. Herein, microbiological, biochemical, and structural findings on four BATSIs with the FOX-4 cephamycinase, a class C β-lactamase that rapidly hydrolyzes cefoxitin, are revealed. FOX-4 is an extended-spectrum class C cephalosporinase that demonstrates conformational flexibility when complexed with certain ligands. Like other β-lactamases of this class, studies on FOX-4 reveal important insights into structure-activity relationships. We show that SM23, a BATSI, shows both remarkable flexibility and affinity, binding similarly to other β-lactamases, yet retaining an IC 50 value < 0.1 μM. Our analyses open up new opportunities for the design of novel transition-state analogs of class C enzymes.


  • Organizational Affiliation

    Department of Chemistry, Hofstra University, Hempstead, NY 11549, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Beta-lactamase
A, B
362Escherichia coliMutation(s): 0
Gene Names: fox-4
EC: 3.5.2.6
UniProt
Find proteins for Q9L387 (Escherichia coli)
Explore Q9L387
Go to UniProtKB:  Q9L387
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9L387
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
SM2
Query on SM2

Download Ideal Coordinates CCD File
C [auth A],
I [auth B]
(1R)-1-(2-THIENYLACETYLAMINO)-1-(3-CARBOXYPHENYL)METHYLBORONIC ACID
C14 H14 B N O5 S
HQLQTGGLHBYZSA-ZDUSSCGKSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
D [auth A]
E [auth A]
F [auth A]
G [auth A]
H [auth A]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
ACT
Query on ACT

Download Ideal Coordinates CCD File
O [auth B],
P [auth B],
Q [auth B],
R [auth B],
S [auth B]
ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.36 Å
  • R-Value Free:  0.193 (Depositor), 0.190 (DCC)
  • R-Value Work:  0.163 (Depositor), 0.170 (DCC)
  • R-Value Observed: 0.165 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 74.294α = 90
b = 57.161β = 91.67
c = 83.229γ = 90
Software Package:
Software NamePurpose
SCALAdata scaling
PHASERphasing
PHENIXrefinement
PDB_EXTRACTdata extraction
HKL-3000data reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted SM2Click on this verticalbar to view details

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2016-08-03
    Type: Initial release
  • Version 1.1: 2020-09-16
    Changes: Data collection, Database references, Derived calculations
  • Version 1.2: 2023-09-27
    Changes: Data collection, Database references, Refinement description
  • Version 1.3: 2024-10-16
    Changes: Structure summary
