4AAP | pdb_00004aap

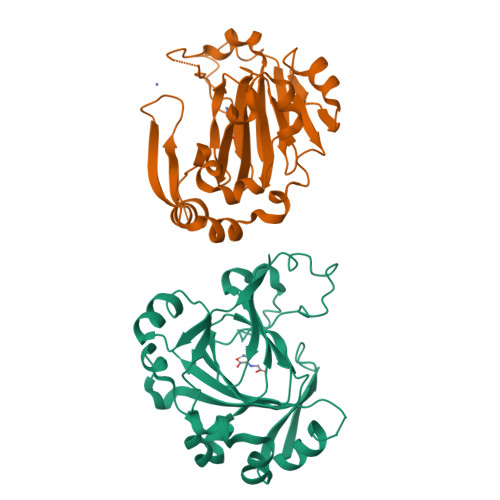

Crystal structure of JMJD5 domain of human Lysine-specific demethylase 8 (KDM8) in complex with N-oxalylglycine (NOG)

PDB DOI: https://doi.org/10.2210/pdb4AAP/pdb

Classification: OXIDOREDUCTASE
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2011-12-05 Released: 2012-02-29
Deposition Author(s): Vollmar, M., Johansson, C., Krojer, T., Canning, P., Allerston, C., Gadhave, A., von Delft, F., Bountra, C., Arrowsmith, C.H., Weigelt, J., Edwards, A., Oppermann, U.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.60 Å
R-Value Free:
0.253 (Depositor), 0.250 (DCC)
R-Value Work:
0.208 (Depositor), 0.210 (DCC)
R-Value Observed:
0.210 (Depositor)

wwPDB Validation 3D Report Full Report

This is version 1.2 of the entry. See complete history.

Literature

Crystal Structure of Jmjd5 Domain of Human Lysine- Specific Demethylase 8 (Kdm8) in Complex with N- Oxalylglycine (Nog)

Vollmar, M., Johansson, C., Krojer, T., Canning, P., Allerston, C., Gadhave, A., von Delft, F., Bountra, C., Arrowsmith, C.H., Weigelt, J., Edwards, A., Oppermann, U.

To be published.

Macromolecule Content

Total Structure Weight: 56.08 kDa
Atom Count: 3,725
Modelled Residue Count: 468
Deposited Residue Count: 478
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
LYSINE-SPECIFIC DEMETHYLASE 8	A, B	239	Homo sapiens	Mutation(s): 0 EC: 1.14.11.27 (PDB Primary Data), 3.4 (UniProt), 1.14.11.73 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for Q8N371 (Homo sapiens) Explore Q8N371 Go to UniProtKB: Q8N371
PHAROS: Q8N371 GTEx: ENSG00000155666
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q8N371
Sequence Annotations Expand
Reference Sequence LOADING

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
OGA Query on OGA Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain G [auth B] MOL2 format, chain D [auth A] MOL2 format, chain G [auth B] mmCIF format, chain D [auth A] mmCIF format, chain G [auth B]	D [auth A], G [auth B]	N-OXALYLGLYCINE C₄ H₅ N O₅ BIMZLRFONYSTPT-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain G [auth B] Interactions & Density Focus chain D [auth A] Focus chain G [auth B]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain E [auth A] SDF format, chain F [auth B] SDF format, chain H [auth B] MOL2 format, chain C [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth B] MOL2 format, chain H [auth B] mmCIF format, chain C [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth B] mmCIF format, chain H [auth B]	C [auth A], E [auth A], F [auth B], H [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain E [auth A] Focus chain F [auth B] Focus chain H [auth B] Interactions & Density Focus chain C [auth A] Focus chain E [auth A] Focus chain F [auth B] Focus chain H [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.60 Å
R-Value Free: 0.253 (Depositor), 0.250 (DCC)
R-Value Work: 0.208 (Depositor), 0.210 (DCC)
R-Value Observed: 0.210 (Depositor)

Space Group: P 3₂ 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 68.575	α = 90
b = 68.575	β = 90
c = 269.003	γ = 120

Software Package:

Software Name	Purpose
REFMAC	refinement
XDS	data reduction
SCALA	data scaling
SHARP	phasing

Structure Validation

View Full Validation Report

Entry History

Deposition Data

Released Date: 2012-02-29

Deposition Author(s):

Revision History (Full details and data files)

Version 1.0: 2012-02-29
Type: Initial release
Version 1.1: 2018-01-24
Changes: Database references
Version 1.2: 2024-05-08
Changes: Data collection, Database references, Derived calculations, Other
